Maximum lifting efficiency with minimum site footprint – designed for the future of vertical construction.

The Mini Tower Crane (Internal Climbing Type) is an advanced and space-efficient lifting solution specifically designed for high-rise construction projects, where external crane installation is challenging or restricted. This system is installed within the building structure and climbs progressively as the building height increases, making it ideal for urban and congested construction environments.

Key Features
Internal Climbing Mechanism: The crane is installed inside the building core and climbs upward floor by floor using climbing frames, eliminating the need for external tower support.
Compact Design: Requires minimal ground space, making it suitable for projects with limited site area.
High Efficiency Lifting: Designed for smooth material handling with optimized hoisting, trolleying, and slewing mechanisms.
Easy Integration: Can be installed within lift shafts or structural cores without disturbing external construction activities.
Safe & Stable Operation: Ensures better stability as it is supported by the building structure at multiple levels.

Technical Highlights
Model: TXS10 (Internal Climbing)
Maximum Load Capacity: 1 Ton
Working Radius: Up to 10 meters
Free Standing Height: Up to 17 meters
Hoisting Speed: 0–48 m/min
Trolley Speed: 0–16 m/min
Slewing Speed: 0–0.8 r/min
Power Supply: 380V (±10%) / 50Hz

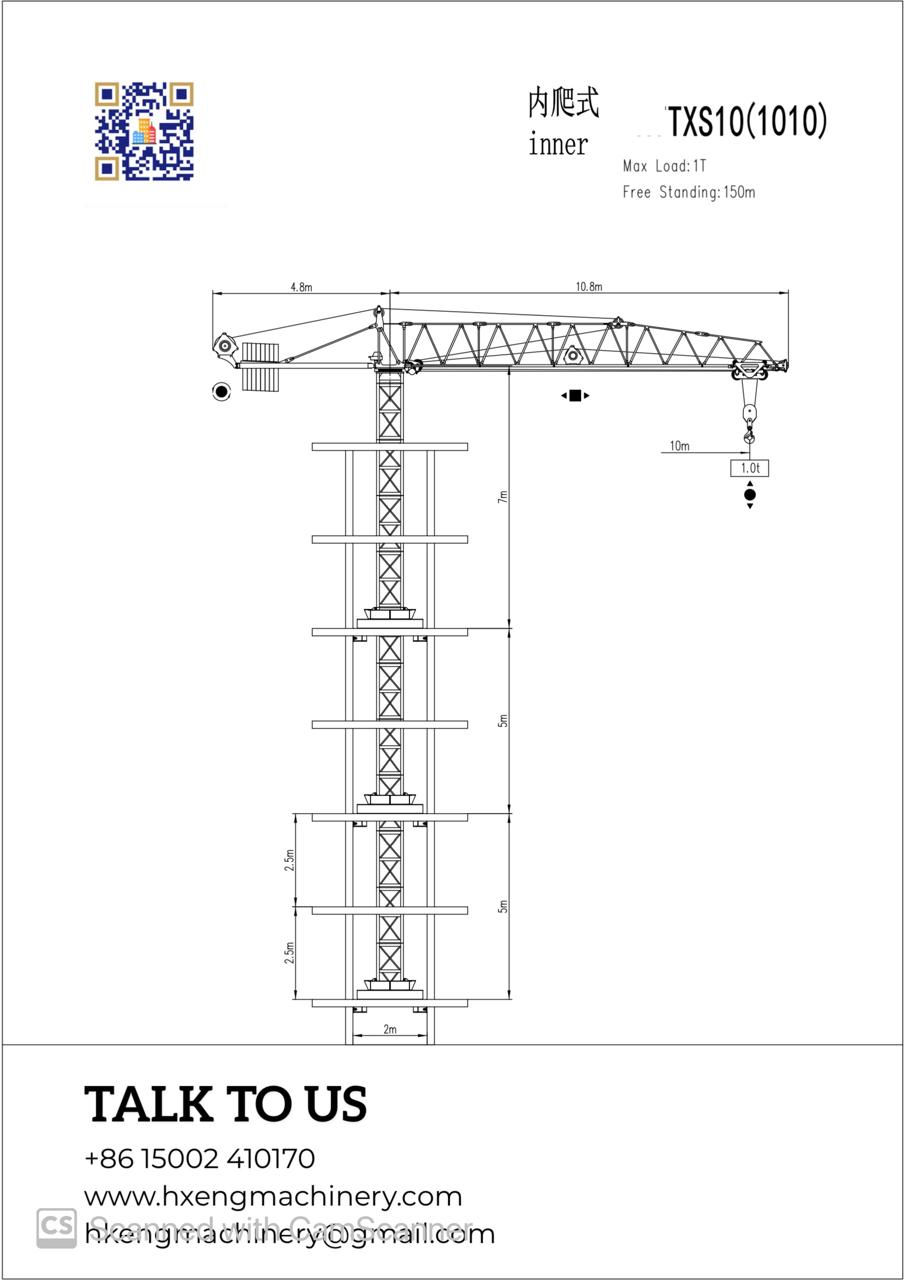

(As per technical diagram and specifications in brochure )

Applications
High-rise residential buildings
Commercial towers
Metro and infrastructure projects
Confined urban construction sites
Projects with restricted external crane installation

Advantages
Eliminates dependency on large external tower cranes
Reduces site congestion and improves safety
Faster vertical material movement within the building
Cost-effective solution for mid to high-rise projects
Lower installation and dismantling complexity
Ideal for projects with tight timelines and space constraints

Why Choose This Solution
The Mini Tower Crane offers a smart alternative to conventional lifting systems by combining compact design, internal climbing capability, and efficient performance. It is particularly beneficial for developers and contractors looking to optimize site utilization, reduce operational delays, and enhance productivity in modern high-rise construction.
